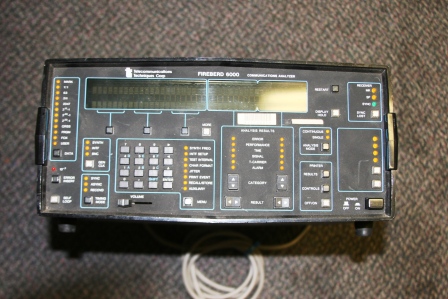

TTC Fireberd 6000 Communication Analyzer

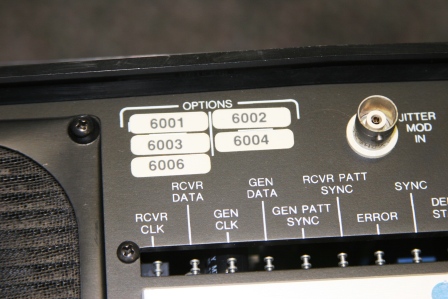

Options Installed

• Option 6001 DS1 Wideband Jitter Measurement

• Option 6002 DS1 Jitter Spectral Analysis

• Option 6003 DS1 Jitter Generation

• Option 6004 Clock Recovery

• Option 6006 Precision Time Base (1PPM) one part per million

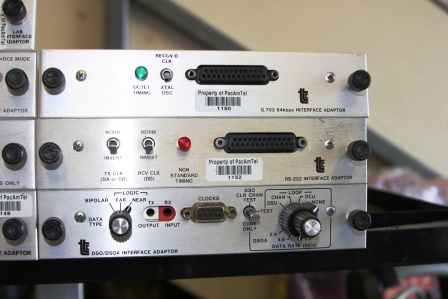

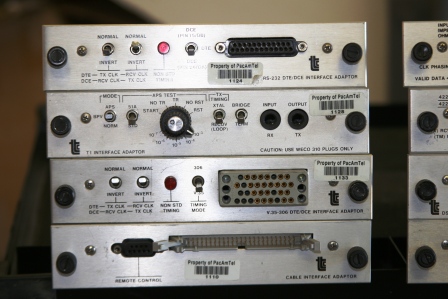

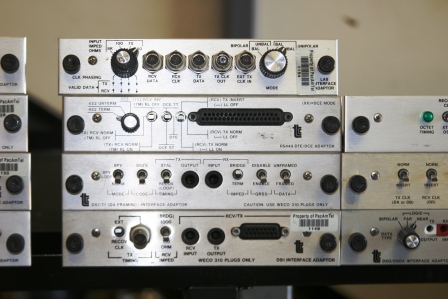

Interface Adaptors

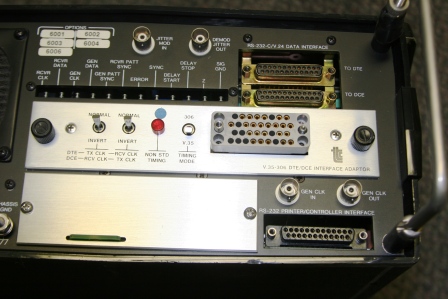

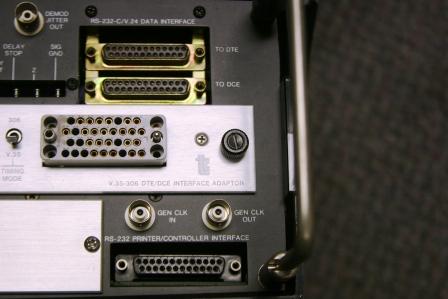

1. (2) V.35-306 DTE/DCE Interface Adapter

2. Cable Interface Adaptor

3. T1 Interface Adaptor

4. RS-232 DTE / DCE Interface Adaptor

5. G.703 64 kps Interface Adaptor

6. DS1 / T1 (D4 Framing) Interface Adaptor

7. DS1 Interface Adaptor

8. RS 449 DTE / DCE Adaptor

9. LAB Interface Adaptor

10. DSO / DSOA Interface Adaptor

11. RS-232 Interface Adaptor

Manual PDF, PDF Datasheet, PDF Quick Reference
